How to find users near a central coordinate (spatial nearest neighbor queries)

Scenario

You have a database table of users who have a location specified. Given an input location point, coordinate, or city – find the top N (or all) of the nearest neighbors in range. So for example, if I am in Seattle, return 15 nearest users to my location within a 50 mile range. This is a classic spatial/geography scenario with many applicable uses. I used this technique when building some Tourvival features.

Setup

Our example uses Microsoft SQL Server, or SQL Azure database. Let’s start by making an example users table.

CREATE TABLE [dbo].[Users]
(
	[ID] uniqueidentifier not null primary key,
	[LocationPoint] geography not null

	--Non-relevant columns ommitted...
)

The geography data type is a .NET CLR data type in SQL server that is used to represent data in a ’round-earth coordinate system’. More simply – it is a data type that stores both latitude and longitude together in one object, instead of storing them as separate columns for lat/long.

For optimal performance, we also create an index on our [LocationPoint] column.

CREATE SPATIAL INDEX [SPI_Users_Geography_LocationPoint]
ON [dbo].[Users] (LocationPoint);

Let’s manually insert some test data for some fictional users in the Seattle area. Some of which may be out of our center point range.

INSERT INTO [dbo].[Users] VALUES ( newid(), geography::Point(47.60621,-122.33207, 4326) ) -- seattle
INSERT INTO [dbo].[Users] VALUES ( newid(), geography::Point(47.60748,-122.32894, 4326) ) -- seattle
INSERT INTO [dbo].[Users] VALUES ( newid(), geography::Point(47.60297,-122.16551, 4326) ) -- bellevue
INSERT INTO [dbo].[Users] VALUES ( newid(), geography::Point(47.62206,-122.20836, 4326) ) -- bellevue
INSERT INTO [dbo].[Users] VALUES ( newid(), geography::Point(47.75559,-122.19438, 4326) ) -- bothell
INSERT INTO [dbo].[Users] VALUES ( newid(), geography::Point(47.67583,-122.20370, 4326) ) -- kirkland
INSERT INTO [dbo].[Users] VALUES ( newid(), geography::Point(47.67189,-122.20392, 4326) ) -- kirkland
INSERT INTO [dbo].[Users] VALUES ( newid(), geography::Point(47.64397,-122.39043, 4326) ) -- seattle
INSERT INTO [dbo].[Users] VALUES ( newid(), geography::Point(47.62883,-122.36032, 4326) ) -- seattle
INSERT INTO [dbo].[Users] VALUES ( newid(), geography::Point(47.29836,-122.25363, 4326) ) -- auburn
INSERT INTO [dbo].[Users] VALUES ( newid(), geography::Point(47.22775,-122.44424, 4326) ) -- tacoma
INSERT INTO [dbo].[Users] VALUES ( newid(), geography::Point(48.51122,-122.61920, 4326) ) -- anacortes
INSERT INTO [dbo].[Users] VALUES ( newid(), geography::Point(47.98033,-122.20488, 4326) ) -- everett
INSERT INTO [dbo].[Users] VALUES ( newid(), geography::Point(47.99774,-122.19174, 4326) ) -- everett
INSERT INTO [dbo].[Users] VALUES ( newid(), geography::Point(48.05440,-122.18044, 4326) ) -- marysville
INSERT INTO [dbo].[Users] VALUES ( newid(), geography::Point(45.52280,-122.66926, 4326) ) -- portland
INSERT INTO [dbo].[Users] VALUES ( newid(), geography::Point(45.52006,-122.67685, 4326) ) -- portland

Spatial query

Here is the simplified example query with a couple hard-coded parameters. In real production code, this should be locked up in a stored procedure with parameters.

We declare a center point, a range limit, and then run the query leveraging the STDistance method on the geography object columns:

-- Geo-point for Seattle
DECLARE @CenterPoint geography = geography::Point(47.60621, -122.33207, 4326)

-- 50 mile range (expressed as meters)
DECLARE @RangeMeters int = 80467

SELECT	[dbo].[Users].[ID] as [UserID]
FROM	[dbo].[Users]
WHERE	([dbo].[Users].[LocationPoint]).STDistance(@CenterPoint) < @RangeMeters
ORDER BY ([dbo].[Users].[LocationPoint]).STDistance(@CenterPoint)

This will return a list of user IDs, in order by distance, within the limit range.

Tip: You can create geography objects from lat/long coordinates using the Geography.Point() static method.

Want to limit the results to the top N items? Add the TOP clause to the first line.

SELECT	TOP 15 [dbo].[Users].[ID] as [UserID]
FROM	[dbo].[Users]
WHERE	([dbo].[Users].[LocationPoint]).STDistance(@CenterPoint) < @RangeMeters
ORDER BY ([dbo].[Users].[LocationPoint]).STDistance(@CenterPoint)

Output

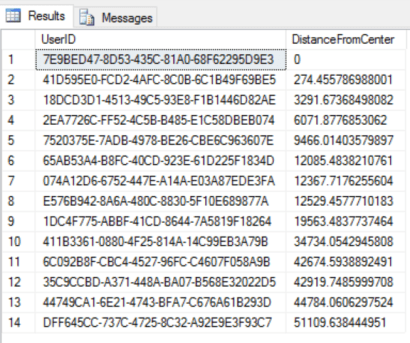

Since a simple list of user IDs doesn’t make for a very interesting visual, I added the STDistance output value for each row to the query results.

What we can see from the results is clear: users returned are near the center point, in order by distance, radiating outward to the range limit (50 miles).

nearby-query-results4
